Lighting panel board EDP3026HL is rated for 225 amperes, 480Y/277 volts, 3-phase, 4-wire with a 42 KAIC rating. The enclosure includes three main circuit breaker connections consisting of two 100-ampere 3-pole breakers and one 150-ampere 3-pole breaker.

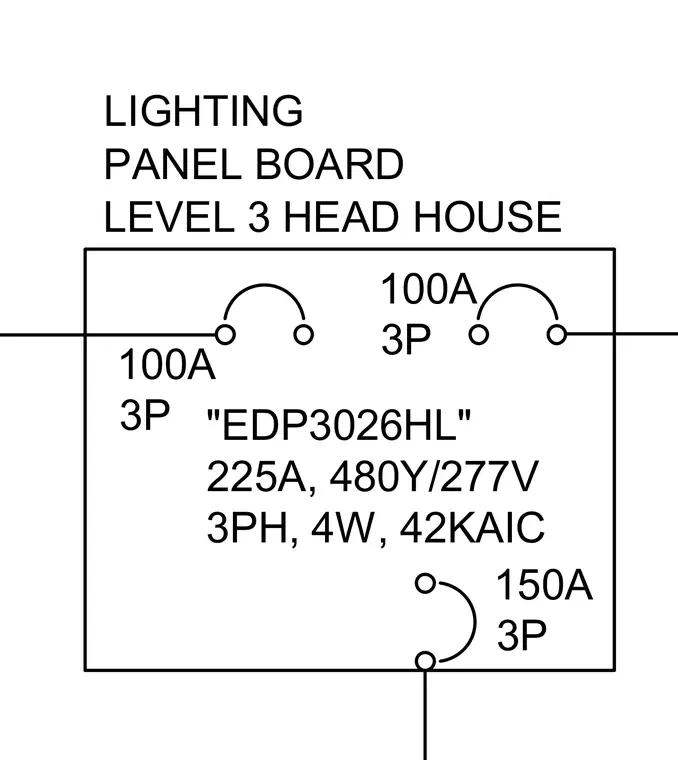

LIGHTING PANEL BOARD LEVEL 3 HEAD HOUSE "EDP3026HL" 225A, 480Y/277V 3PH, 4W, 42KAIC 150A 3P 100A 3P 100A 3P
