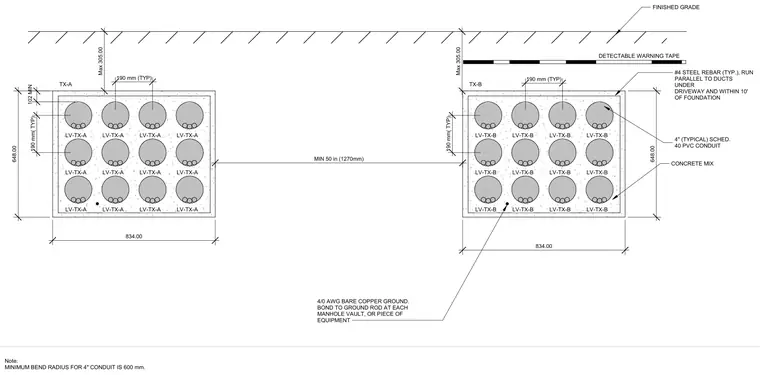

Two concrete-encased low voltage duct banks are positioned below finished grade with a minimum separation of 50 inches. Each duct bank measures 834 millimeters wide by 648 millimeters high and contains multiple 4-inch schedule 40 PVC conduits arranged in a grid with 190-millimeter typical spacing. A 4/0 AWG bare copper ground wire is embedded in each encasement and bonded to ground rods at each manhole, vault, or piece of equipment. Number 4 steel rebar runs parallel to the ducts under driveways and within 10 feet of foundations. Detectable warning tape is installed above the duct banks below finished grade. A general note specifies that the minimum bend radius for 4-inch conduit is 600 millimeters.
Max 305.00 LV-TX-A FINISHED GRADE 190 mm (TYP) 190 mm( TYP) LV-TX-A LV-TX-A LV-TX-A LV-TX-A LV-TX-A LV-TX-A LV-TX-A LV-TX-A LV-TX-A LV-TX-A LV-TX-A LV-TX-B 190 mm (TYP) 190 mm( TYP) MIN 50 in (1270mm) LV-TX-B LV-TX-B LV-TX-B LV-TX-B LV-TX-B LV-TX-B LV-TX-B LV-TX-B LV-TX-B LV-TX-B LV-TX-B Max 305.00 648.00 834.00 834.00 648.00 TX-B TX-A Note: MINIMUM BEND RADIUS FOR 4" CONDUIT IS 600 mm. 4" (TYPICAL) SCHED. 40 PVC CONDUIT CONCRETE MIX 102 MIN 4/0 AWG BARE COPPER GROUND. BOND TO GROUND ROD AT EACH MANHOLE VAULT, OR PIECE OF EQUIPMENT #4 STEEL REBAR (TYP.), RUN PARALLEL TO DUCTS UNDER DRIVEWAY AND WITHIN 10' OF FOUNDATION DETECTABLE WARNING TAPE
