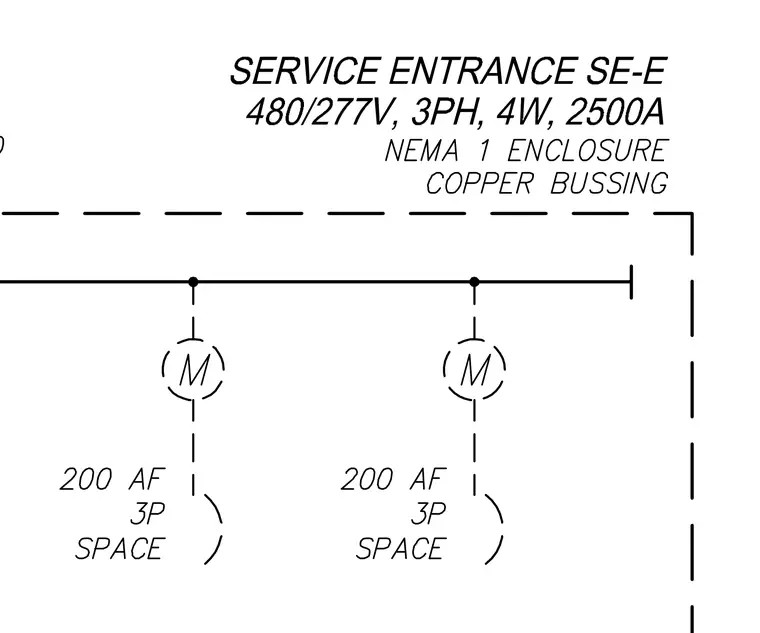

The electrical service entrance is rated for 480/277 volts, 3-phase, 4-wire service at 2500 amperes. It is housed in a NEMA 1 enclosure with copper bussing. The diagram indicates metered sections with 200 amp frame, 3-pole breaker spaces.
