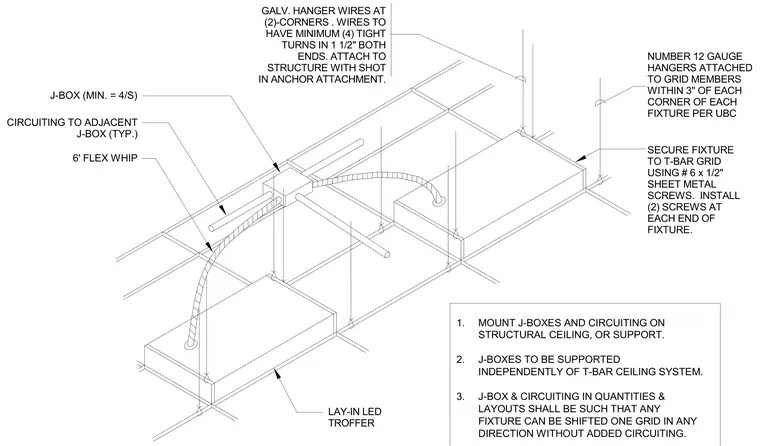

Junction boxes and circuiting mount directly to the structural ceiling or independent supports, keeping them structurally separate from the T-bar ceiling system. Galvanized hanger wires at two corners attach to the building structure using shot-in anchors, requiring a minimum of four tight turns in one and a half inches at both ends. Number twelve gauge hangers attach to grid members within three inches of each corner of each fixture per the Uniform Building Code. Fixtures secure to the T-bar grid using two number six by one-half inch sheet metal screws at each end of the fixture. A six-foot flexible whip connects the lay-in LED troffer to the junction box, with circuit quantities and layouts allowing any fixture to shift one grid in any direction without added circuiting.
1. MOUNT J-BOXES AND CIRCUITING ON STRUCTURAL CEILING, OR SUPPORT. 2. J-BOXES TO BE SUPPORTED INDEPENDENTLY OF T-BAR CEILING SYSTEM. 3. J-BOX & CIRCUITING IN QUANTITIES & LAYOUTS SHALL BE SUCH THAT ANY FIXTURE CAN BE SHIFTED ONE GRID IN ANY DIRECTION WITHOUT ADDED CIRCUITING. CIRCUITING TO ADJACENT J-BOX (TYP.) 6' FLEX WHIP J-BOX (MIN. = 4/S) GALV. HANGER WIRES AT (2)-CORNERS . WIRES TO HAVE MINIMUM (4) TIGHT TURNS IN 1 1/2" BOTH ENDS. ATTACH TO STRUCTURE WITH SHOT IN ANCHOR ATTACHMENT. NUMBER 12 GAUGE HANGERS ATTACHED TO GRID MEMBERS WITHIN 3'' OF EACH CORNER OF EACH FIXTURE PER UBC SECURE FIXTURE TO T-BAR GRID USING # 6 x 1/2" SHEET METAL SCREWS. INSTALL (2) SCREWS AT EACH END OF FIXTURE. LAY-IN LED TROFFER
