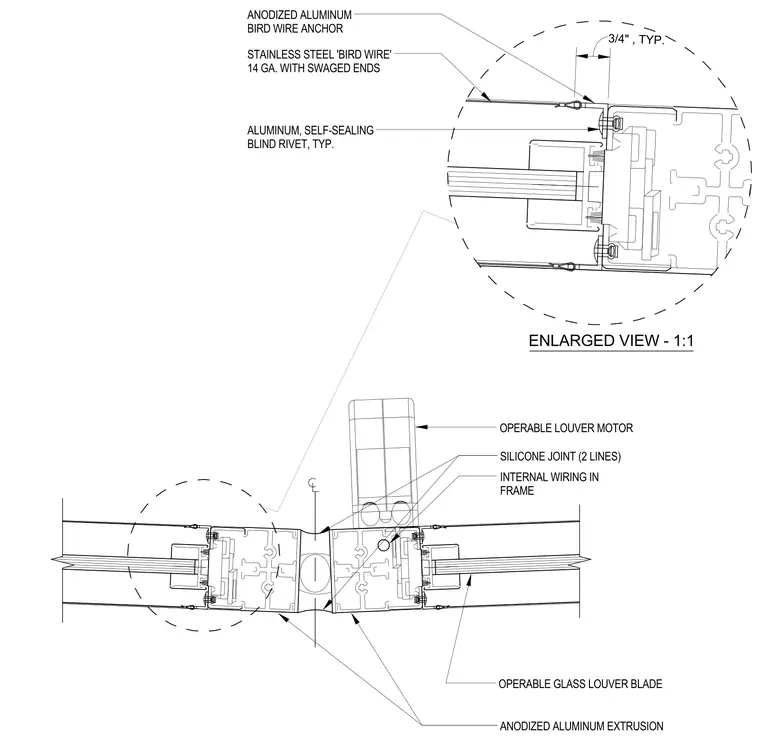

An operable glass louver assembly constructed from anodized aluminum extrusions forms the connection interface between two units. The vertical joint is sealed with two lines of silicone and accommodates internal wiring routed through the aluminum frame alongside an operable louver motor. Fourteen-gauge stainless steel bird wire with swaged ends is secured via anodized aluminum bird wire anchors at a typical spacing of three-quarters of an inch. Aluminum self-sealing blind rivets are utilized typically throughout the frame assembly to fasten components securely.
ANODIZED ALUMINUM EXTRUSION OPERABLE GLASS LOUVER BLADE OPERABLE LOUVER MOTOR SILICONE JOINT (2 LINES) INTERNAL WIRING IN FRAME STAINLESS STEEL 'BIRD WIRE' 14 GA. WITH SWAGED ENDS ANODIZED ALUMINUM BIRD WIRE ANCHOR 3/4" , TYP. ALUMINUM, SELF-SEALING BLIND RIVET, TYP. ENLARGED VIEW - 1:1
