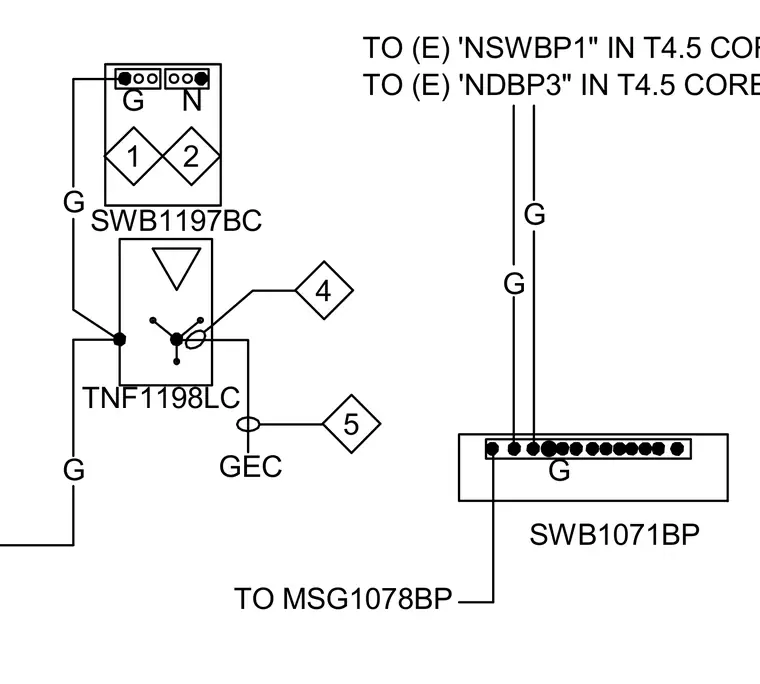

Grounding conductor connections route from switchboard SWB1071BP to panelboard MSG1078BP, existing panel NSWBP1 in core T4.5, and existing panel NDBP3 in core T4.5. Ground conductor G routes from switchboard SWB1197BC through terminal TNF1198LC. A grounding electrode conductor GEC ties into the system at terminal TNF1198LC.
G SWB1071BP TO MSG1078BP TO (E) 'NDBP3" IN T4.5 CORE TO (E) 'NSWBP1" IN T4.5 CORE TNF1198LC N G 1 2 SWB1197BC GEC G G G G 5 4
