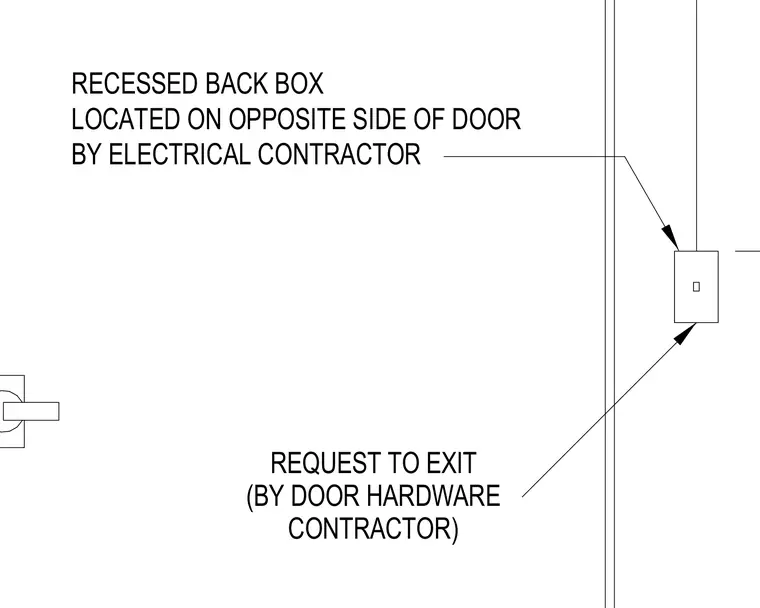

A recessed back box is located on the opposite side of the door by the electrical contractor. A request to exit device is installed by the door hardware contractor.
LOCATED ON OPPOSITE SIDE OF DOOR BY ELECTRICAL CONTRACTOR RECESSED BACK BOX REQUEST TO EXIT (BY DOOR HARDWARE CONTRACTOR)
