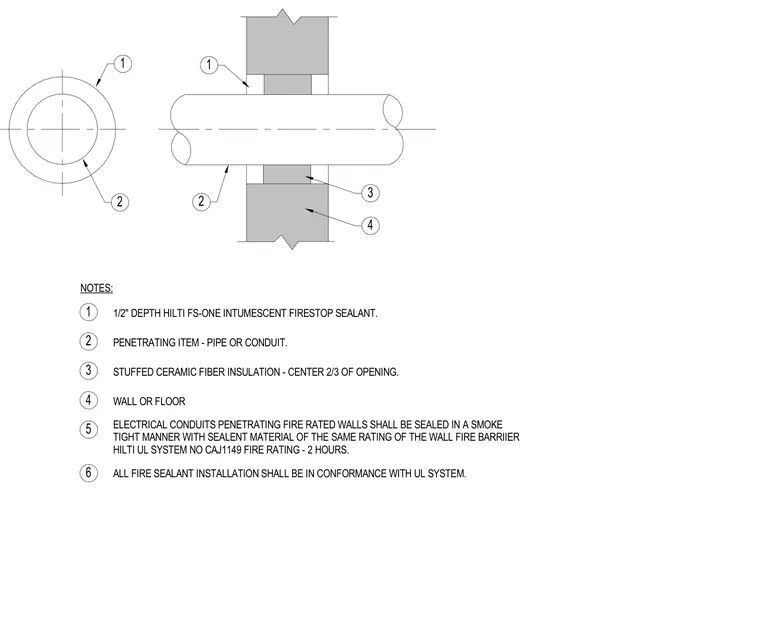

A typical pipe or conduit penetrates a fire-rated wall or floor assembly with a two-hour fire rating in accordance with Hilti UL System No. CAJ1149. The annular space around the penetrating item is packed in the center two-thirds with stuffed ceramic fiber insulation and sealed at the exterior faces with a one-half-inch depth of Hilti FS-One intumescent firestop sealant. All electrical conduits penetrating fire-rated barriers must be sealed in a smoke-tight manner using compatible sealant materials matching the assembly rating.
1 2 3 4 5 6 NOTES: 1/2" DEPTH HILTI FS-ONE INTUMESCENT FIRESTOP SEALANT. PENETRATING ITEM - PIPE OR CONDUIT. STUFFED CERAMIC FIBER INSULATION - CENTER 2/3 OF OPENING. WALL OR FLOOR ELECTRICAL CONDUITS PENETRATING FIRE RATED WALLS SHALL BE SEALED IN A SMOKE TIGHT MANNER WITH SEALENT MATERIAL OF THE SAME RATING OF THE WALL FIRE BARRIIER HILTI UL SYSTEM NO CAJ1149 FIRE RATING - 2 HOURS. ALL FIRE SEALANT INSTALLATION SHALL BE IN CONFORMANCE WITH UL SYSTEM. 3 2 4 2 1 1
