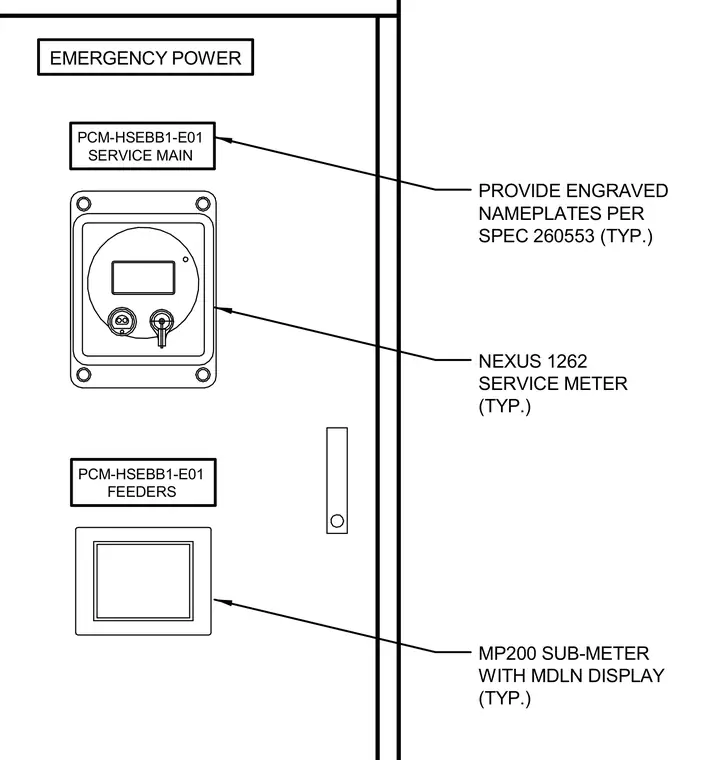

An emergency power panel is equipped with engraved nameplates following specification 260553. A Nexus 1262 service meter with designation PCM-HSEBB1-E01 for the service main is mounted on the enclosure door. An MP200 sub-meter with an MDLN display for feeders labeled PCM-HSEBB1-E01 is installed below the service meter. All components are labeled typically for electrical distribution identification.
PROVIDE ENGRAVED NAMEPLATES PER SPEC 260553 (TYP.) PCM-HSEBB1-E01 SERVICE MAIN EMERGENCY POWER PCM-HSEBB1-E01 FEEDERS NEXUS 1262 SERVICE METER (TYP.) MP200 SUB-METER WITH MDLN DISPLAY (TYP.)
