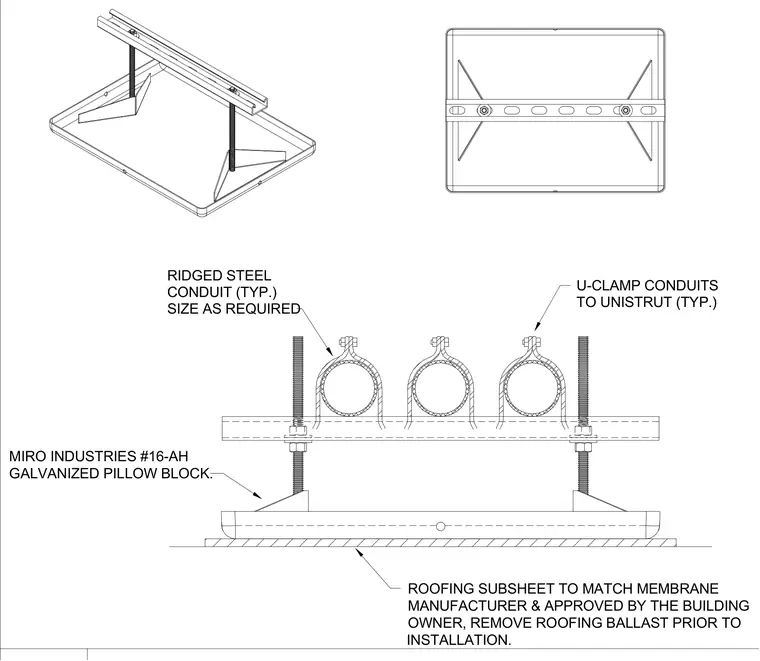

Rigid steel conduits are secured with U-clamps to a horizontal Unistrut channel. The Unistrut channel is supported by threaded rods fastened to a Miro Industries #16-AH galvanized pillow block. The pillow block rests on a roofing sub sheet that matches the membrane manufacturer and is approved by the building owner. Any roofing ballast must be removed prior to installation.
U-CLAMP CONDUITS TO UNISTRUT (TYP.) RIDGED STEEL CONDUIT (TYP.) SIZE AS REQUIRED MIRO INDUSTRIES #16-AH GALVANIZED PILLOW BLOCK. ROOFING SUBSHEET TO MATCH MEMBRANE MANUFACTURER & APPROVED BY THE BUILDING OWNER, REMOVE ROOFING BALLAST PRIOR TO INSTALLATION.
