Electrical · E-DEBYR

Main Electrical Room Ground Bus Bar Assembly

Materials

Concrete Steel Metal (misc.)

Elements

Entrances Connections / Plates

Connections

Welded Connection

About this detail

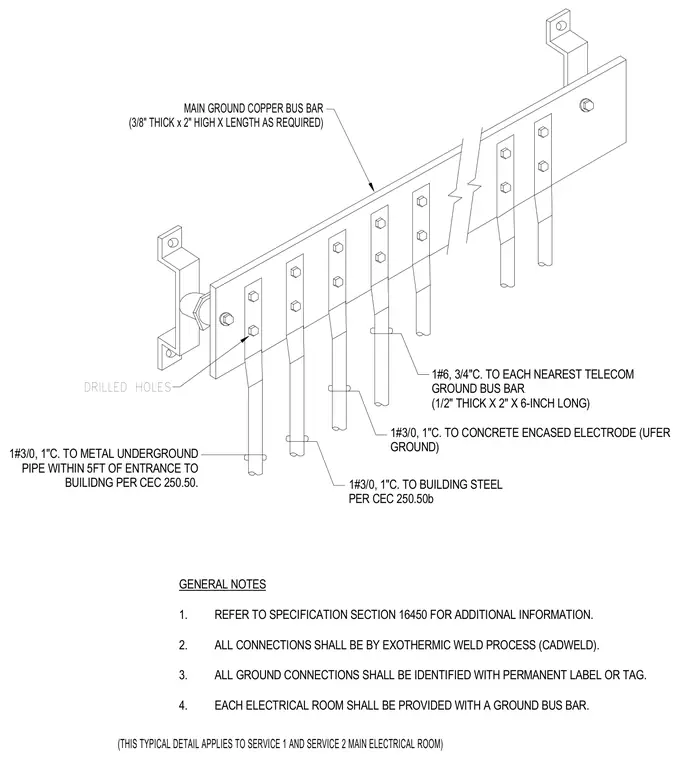

An isometric detail features the main ground copper bus bar measuring three-eighths inch thick by two inches high with length as required, mounted via standoff brackets with drilled holes. Grounding conductors include a one-zero American Wire Gauge (3/0) copper wire in a one-inch conduit connecting to the metal underground pipe within five feet of the building entrance per California Electrical Code (CEC) section 250.50. An identical 3/0 conductor in a one-inch conduit connects to the building steel per CEC section 250.50b, alongside another 3/0 conductor running to a concrete-encased electrode or Ufer ground. Additionally, a number 6 wire in a three-quarter-inch conduit connects to each nearest telecom ground bus bar measuring one-half inch thick by two inches wide by six inches long. All electrical connections utilize an exothermic weld process (Cadweld) and bear permanent labels or tags.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
