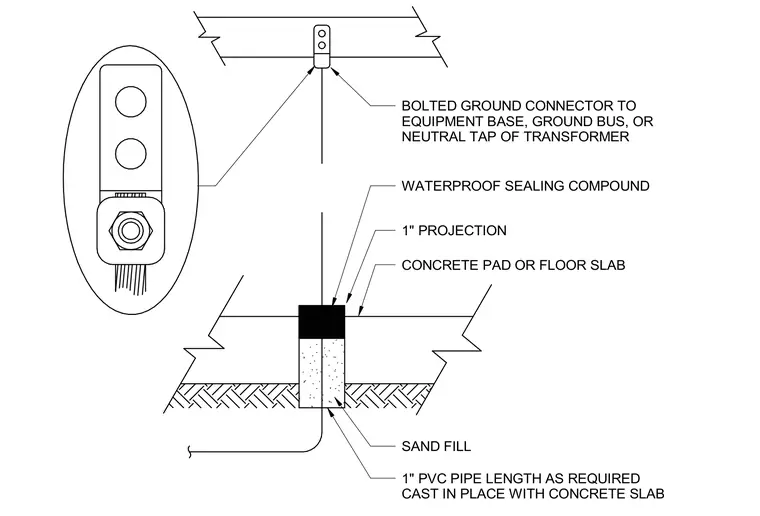

A one-inch polyvinyl chloride pipe sleeve of required length is cast directly into the concrete pad or floor slab, surrounded below by a sand fill. The top of the sleeve features a one-inch projection finished with a waterproof sealing compound at the slab surface. A bolted ground connector attaches to the equipment base, ground bus, or neutral tap of a transformer, extending down through the assembly.
1" PVC PIPE LENGTH AS REQUIRED CAST IN PLACE WITH CONCRETE SLAB SAND FILL 1" PROJECTION BOLTED GROUND CONNECTOR TO EQUIPMENT BASE, GROUND BUS, OR NEUTRAL TAP OF TRANSFORMER CONCRETE PAD OR FLOOR SLAB WATERPROOF SEALING COMPOUND
