Electrical · E-DCV54

Recessed Floor Box Installation in Concrete Slab

Materials

Concrete Steel Stainless Steel Glass / Glazing

Elements

Doors Floors / Slabs Foundations / Footings

About this detail

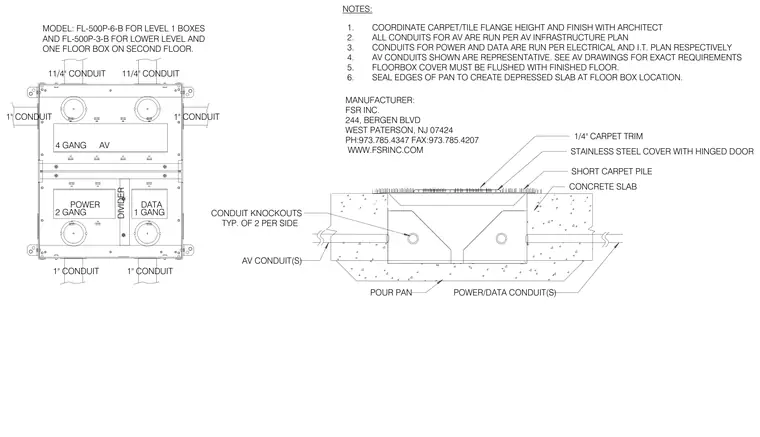

This electrical detail shows a floor box recessed into a concrete slab, equipped with a stainless steel cover and a hinged door flush with the finished floor. The pour pan features conduit knockouts with two knockouts per side, accommodating one-inch and one-and-one-quarter-inch conduits for audio-visual, power, and data lines. A one-quarter-inch carpet trim frames the unit adjacent to short carpet pile flooring. Edges of the pour pan are sealed to form a depressed slab pocket at the floor box location. Manufacturer details specify models FL-500P-6-B and FL-500P-3-B by FSR Inc.
