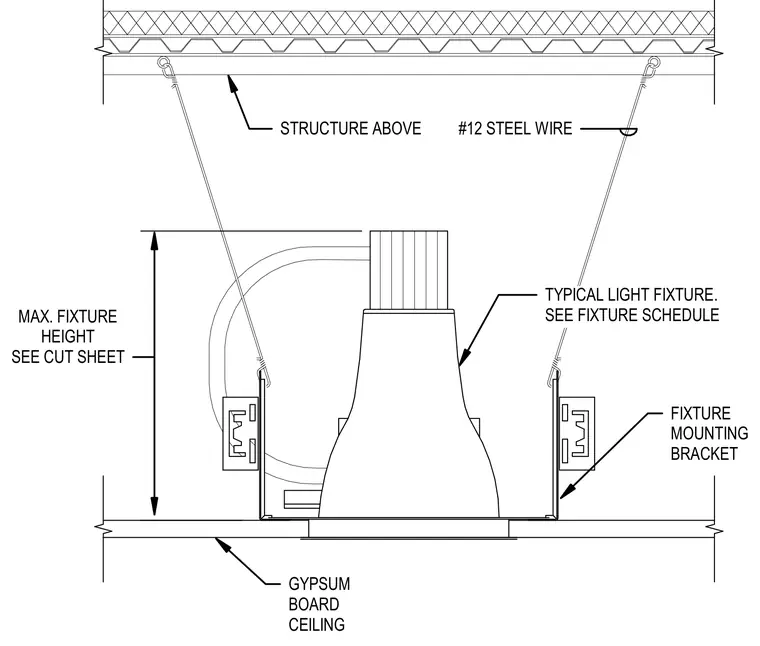

A recessed light fixture is supported by fixture mounting brackets attached to the gypsum board ceiling assembly. The fixture housing is hung from the structure above using number twelve steel wire hangers. The maximum fixture height is determined per the manufacturer cut sheet. The light fixture type is specified in the electrical fixture schedule.
MAX. FIXTURE HEIGHT SEE CUT SHEET STRUCTURE ABOVE #12 STEEL WIRE TYPICAL LIGHT FIXTURE. SEE FIXTURE SCHEDULE FIXTURE MOUNTING BRACKET GYPSUM BOARD CEILING
