Wireless Occupancy and Daylight Sensor Device Details

Elements

About this detail

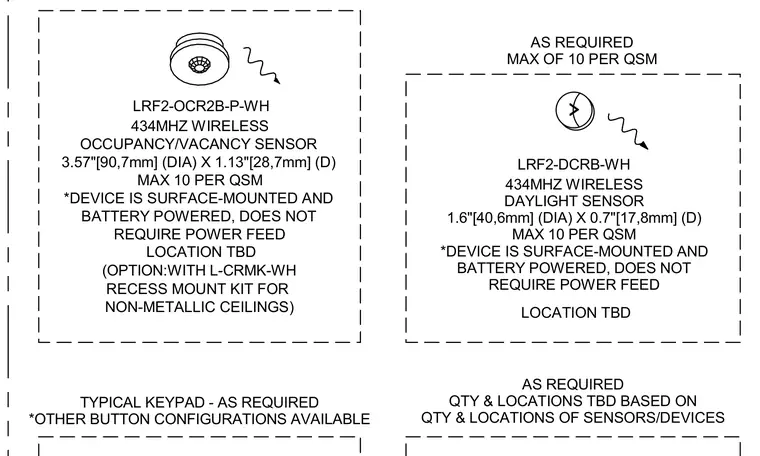

Wireless occupancy and daylight sensor components include model numbers LRF2-OCR2B-P-WH and LRF2-DCRB-WH. The occupancy sensor measures 3.57 inches in diameter by 1.13 inches in depth, while the daylight sensor measures 1.6 inches in diameter by 0.7 inches in depth. Both devices are surface-mounted and battery-powered, requiring no external power feed. An optional recess mount kit is available for non-metallic ceilings, and quantities are limited to a maximum of ten per quantum sensor module.
