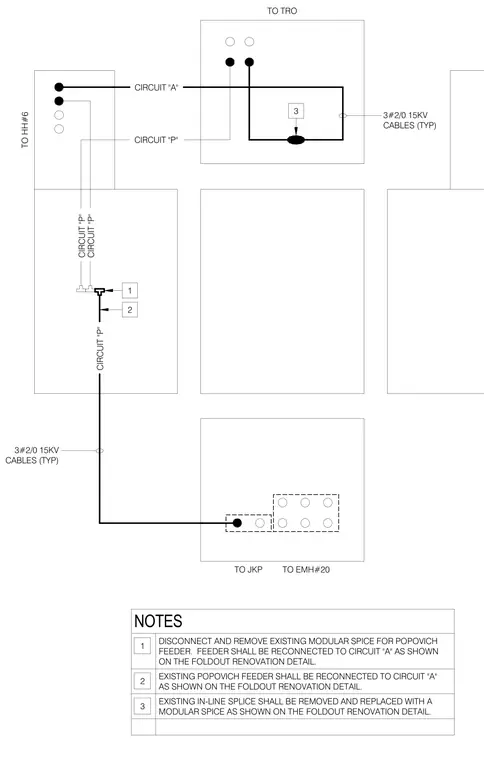

This electrical detail outlines the demolition and reconfiguration of medium-voltage cabling, specifically directing the handling of three sets of two-zero 15kV cables running between handhole six, the transformer, electrical manhole twenty, and junction pull box. The existing modular splice for the Popovich feeder is disconnected and removed, with the feeder reconnected to circuit A. An existing in-line splice is removed and replaced with a modular splice as indicated in the accompanying renovation detail.
TO TRO TO EMH#20 TO HH#6 TO JKP CIRCUIT "P" CIRCUIT "P" CIRCUIT "A" CIRCUIT "P" CIRCUIT "P" 3#2/0 15KV CABLES (TYP) 3 1 2 3#2/0 15KV CABLES (TYP) NOTES DISCONNECT AND REMOVE EXISTING MODULAR SPICE FOR POPOVICH FEEDER. FEEDER SHALL BE RECONNECTED TO CIRCUIT "A" AS SHOWN ON THE FOLDOUT RENOVATION DETAIL. EXISTING POPOVICH FEEDER SHALL BE RECONNECTED TO CIRCUIT "A" AS SHOWN ON THE FOLDOUT RENOVATION DETAIL. EXISTING IN-LINE SPLICE SHALL BE REMOVED AND REPLACED WITH A MODULAR SPICE AS SHOWN ON THE FOLDOUT RENOVATION DETAIL. 1 2 3
