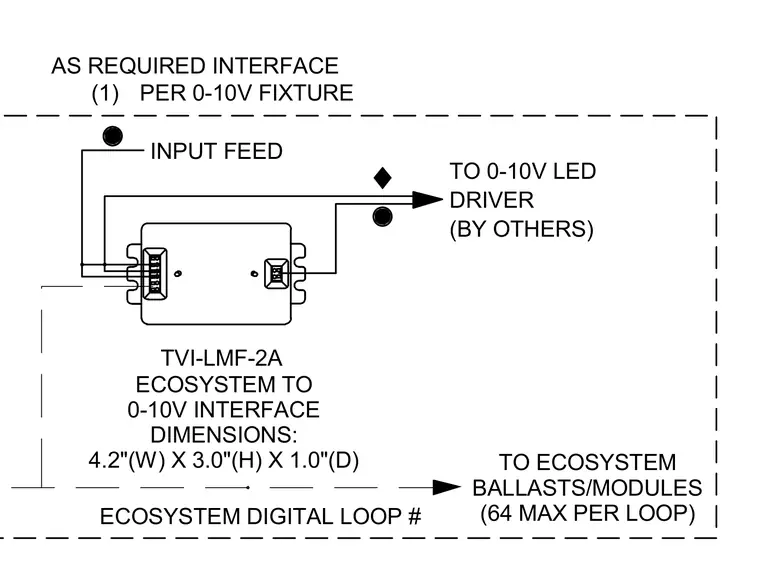

This electrical diagram details the wiring and connection layout for a TVI-LMF-2A EcoSystem to 0-10V interface measuring 4.2 inches wide by 3.0 inches high by 1.0 inch deep. An input feed supplies power and signal to the interface module. One interface is required per 0-10V fixture, connecting to the 0-10V LED driver provided by others. The system supports up to 64 maximum ballasts or modules per EcoSystem digital loop.
TO 0-10V LED DRIVER (BY OTHERS) TVI-LMF-2A ECOSYSTEM TO 0-10V INTERFACE DIMENSIONS: 4.2"(W) X 3.0"(H) X 1.0"(D) INPUT FEED TO ECOSYSTEM BALLASTS/MODULES (64 MAX PER LOOP) ECOSYSTEM DIGITAL LOOP # AS REQUIRED INTERFACE (1) PER 0-10V FIXTURE
