E-D6HVM — Elevator Electrical Power Distribution Riser Diagram

Electrical · E-D6HVM

Elevator Electrical Power Distribution Riser Diagram

About this detail

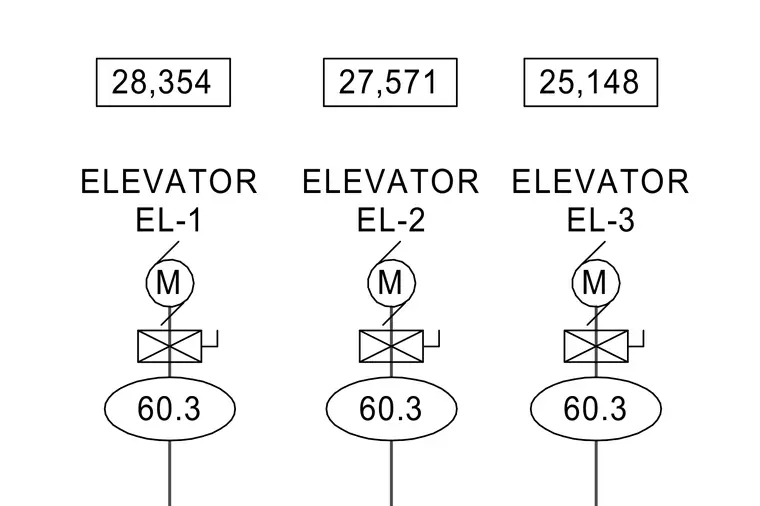

An electrical schematic shows three elevator circuits designated as Elevator EL-1, Elevator EL-2, and Elevator EL-3. Each line diagram includes numerical load values at the top, motor connection symbols, disconnect switches, and numerical sizing indicators of 60.3.

M M M 28,354 27,571 25,148 60.3 60.3 60.3 ELEVATOR EL-1 ELEVATOR EL-2 ELEVATOR EL-3

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
