A recessed troffer light fixture integrates into a lay-in acoustical ceiling grid using specialized fixture clamps provided one per side per fixture. The assembly is secured overhead by twelve-gauge wire hangers located at each corner of the fixture and installed completely independent of the ceiling support system.

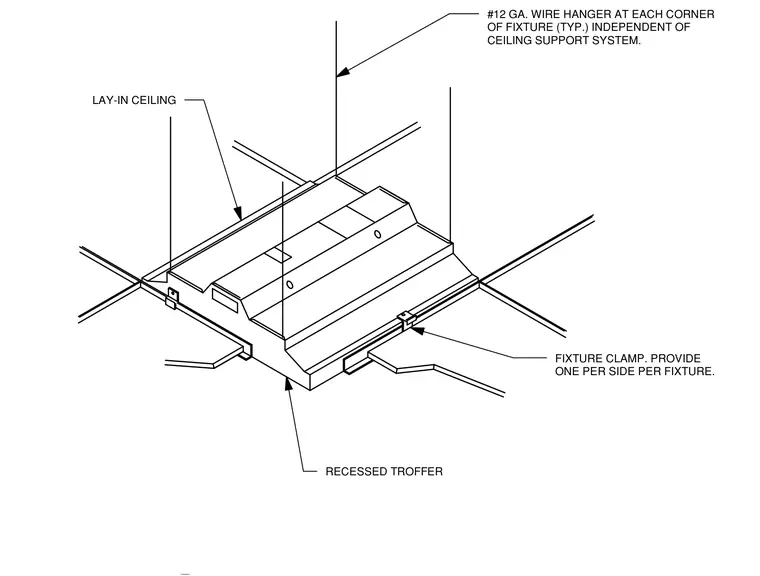

LAY−IN CEILING RECESSED TROFFER FIXTURE CLAMP. PROVIDE ONE PER SIDE PER FIXTURE. #12 GA. WIRE HANGER AT EACH CORNER OF FIXTURE (TYP.) INDEPENDENT OF CEILING SUPPORT SYSTEM.
