Electrical · E-D48MB

Electrical Power Distribution Diagram for Panels and VFDs

About this detail

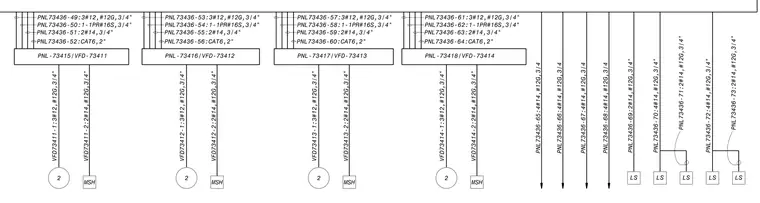

Electrical distribution diagram showing connections from panels PNL-73415 through PNL-73418 and variable frequency drives VFD-73411 through VFD-73414 to various control and power loads. Conductors include three number twelve wires with a ground in three-quarter inch conduit, twisted shielded pairs for instrumentation signals, two number fourteen wires, and CAT6 data cables. Individual home runs connect panels to field devices including motor starters marked MSH and limit switches marked LS.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
