Electrical · E-D2GFB

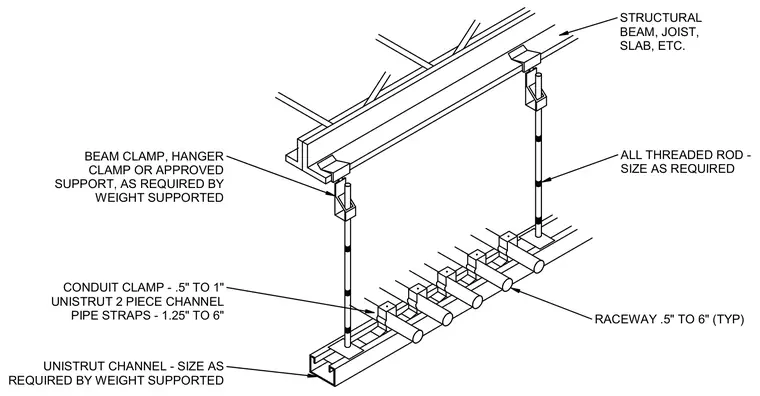

Typical Conduit Rack Detail

Materials

Elements

About this detail

Suspended raceways are supported by a horizontal Unistrut channel sized according to the supported weight. All-threaded rods of required size connect the lower channel to overhead structural beams, joists, or slabs using beam clamps, hanger clamps, or approved supports. Raceways ranging from 0.5 inches to 6 inches in diameter are secured to the Unistrut channel using conduit clamps for sizes 0.5 to 1 inch and two-piece channel pipe straps for sizes 1.25 to 6 inches.
