Electrical · E-CZ4AE

Conveyor Motor Control Center Wiring Diagram

About this detail

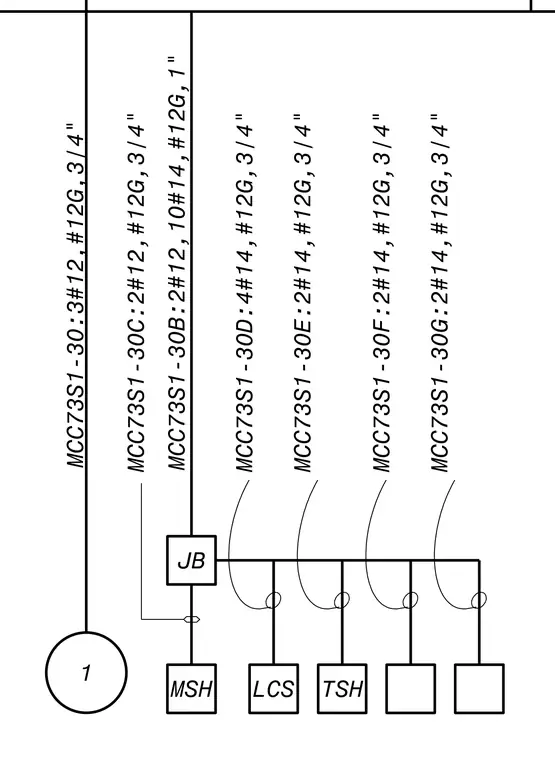

Motor control center circuit layout detailing connections from MCC73S1 to local control stations, motor safety switches, and limit switches through a junction box. Conductor sizing includes specific wire gauges for circuits MCC73S1-30 through 30G, routing through three-quarter inch and one-inch conduits. The schematic designates specific wire counts, such as two #14 conductors and a #12 ground for device 30G, and two #12 with ten #14 conductors for circuit 30B. Signal and power lines terminate at designated field devices including MSH, LCS, and TSH.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
