A 4-11/16" x 4-11/16" x 2-1/8" deep junction box with a single-gang plaster ring is installed to terminate conduit in the ceiling space using a nylon bushing. Cable and circuit designation with complete wiring are provided by the contractor.

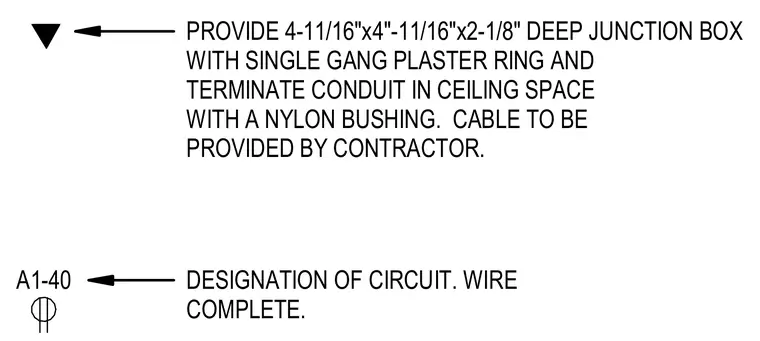

A1-40 PROVIDE 4-11/16"x4"-11/16"x2-1/8" DEEP JUNCTION BOX WITH SINGLE GANG PLASTER RING AND TERMINATE CONDUIT IN CEILING SPACE WITH A NYLON BUSHING. CABLE TO BE PROVIDED BY CONTRACTOR. DESIGNATION OF CIRCUIT. WIRE COMPLETE.
