A pendant speaker enclosure is suspended from an exposed structure using a suspension cable selected to align the bottom of the enclosure with nearby light fixtures. A junction box is located within six inches of the pendant, fed by a conduit. The speaker cable runs from the junction box to the enclosure, and exposed cables require color confirmation with the architect.

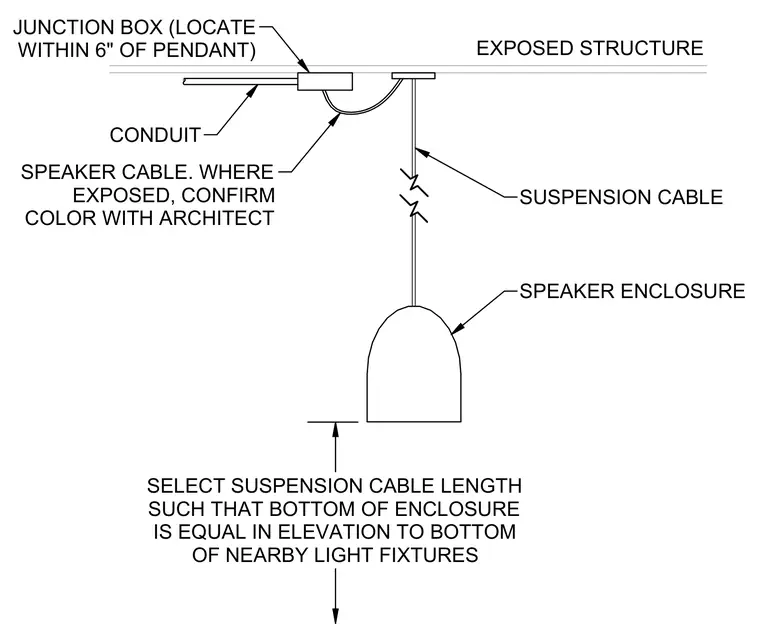

JUNCTION BOX (LOCATE WITHIN 6" OF PENDANT) SPEAKER ENCLOSURE SPEAKER CABLE. WHERE EXPOSED, CONFIRM COLOR WITH ARCHITECT CONDUIT EXPOSED STRUCTURE SUSPENSION CABLE SELECT SUSPENSION CABLE LENGTH SUCH THAT BOTTOM OF ENCLOSURE IS EQUAL IN ELEVATION TO BOTTOM OF NEARBY LIGHT FIXTURES
