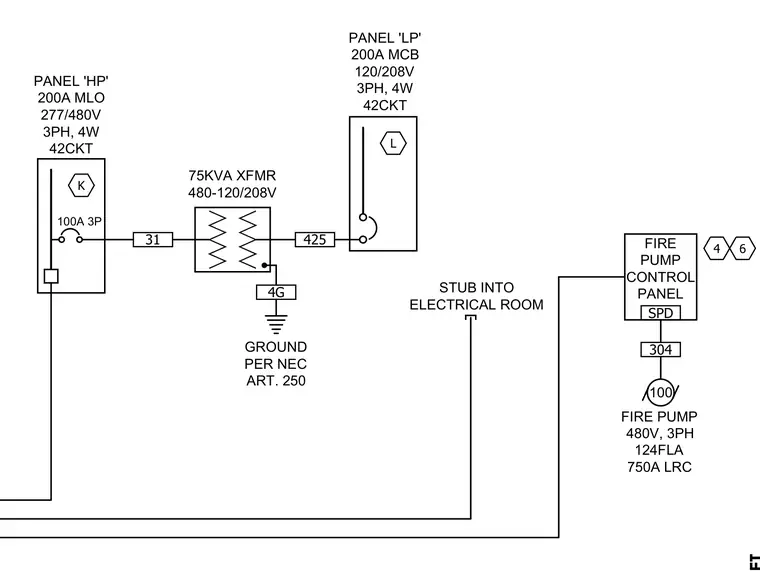

Panel HP supplies a 277/480V 3-phase 4-wire 42-circuit main lug only distribution panel rated at 200A. A 100A 3-pole breaker feeds a 75kVA 480-120/208V transformer with grounding per National Electrical Code Article 250. The transformer steps down voltage to feed Panel LP, a 200A main circuit breaker panel rated at 120/208V 3-phase 4-wire with 42 circuits. A separate feed stubs into the electrical room to supply a fire pump control panel equipped with a surge protective device. The fire pump control panel connects to a 480V 3-phase fire pump drawing 124 full load amps with 750A locked rotor current.
K PANEL 'HP' 200A MLO 277/480V 3PH, 4W 42CKT 75KVA XFMR 480-120/208V 425 100A 3P 4G GROUND PER NEC ART. 250 31 L PANEL 'LP' 200A MCB 120/208V 3PH, 4W 42CKT STUB INTO ELECTRICAL ROOM FIRE PUMP CONTROL PANEL 304 100 FIRE PUMP 480V, 3PH 124FLA 750A LRC SPD 4 6
