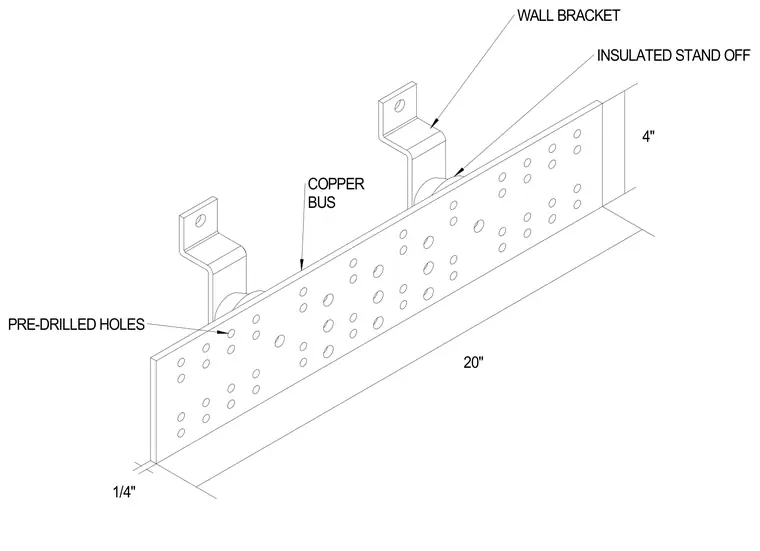

The assembly consists of a four-inch by twenty-inch by quarter-inch copper busbar mounted on insulated standoffs and wall brackets. Pre-drilled holes are spaced across the busbar face for conductor connections.
