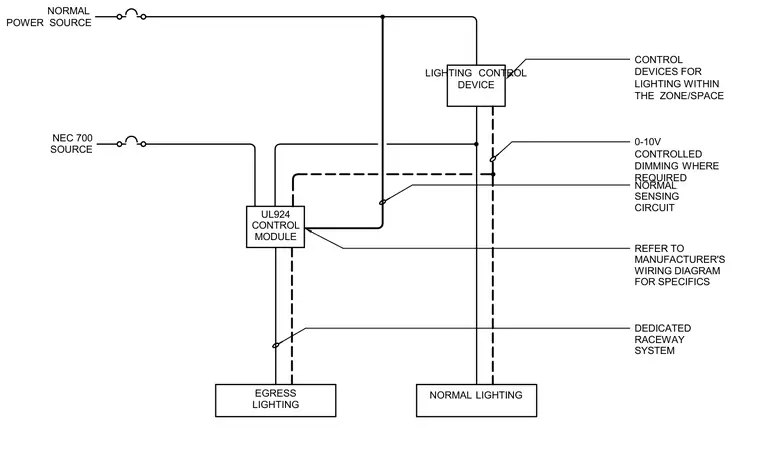

An emergency lighting control system integrates a UL924 control module, an emergency power source per National Electrical Code 700, and a normal power source. A normal sensing circuit monitors the normal power feed to trigger switching when standard power is lost. Lighting control devices within the zone supply zero-to-ten-volt controlled dimming where required. All low-voltage and control wiring runs through a dedicated raceway system. Specific wiring connections must follow the manufacturer instructions.
UL924 CONTROL MODULE EGRESS LIGHTING NORMAL SENSING CIRCUIT NORMAL LIGHTING LIGHTING CONTROL DEVICE 0-10V CONTROLLED DIMMING WHERE REQUIRED DEDICATED RACEWAY SYSTEM NEC 700 SOURCE NORMAL POWER SOURCE CONTROL DEVICES FOR LIGHTING WITHIN THE ZONE/SPACE REFER TO MANUFACTURER'S WIRING DIAGRAM FOR SPECIFICS
