Electrical Power Distribution Single Line Diagram

About this detail

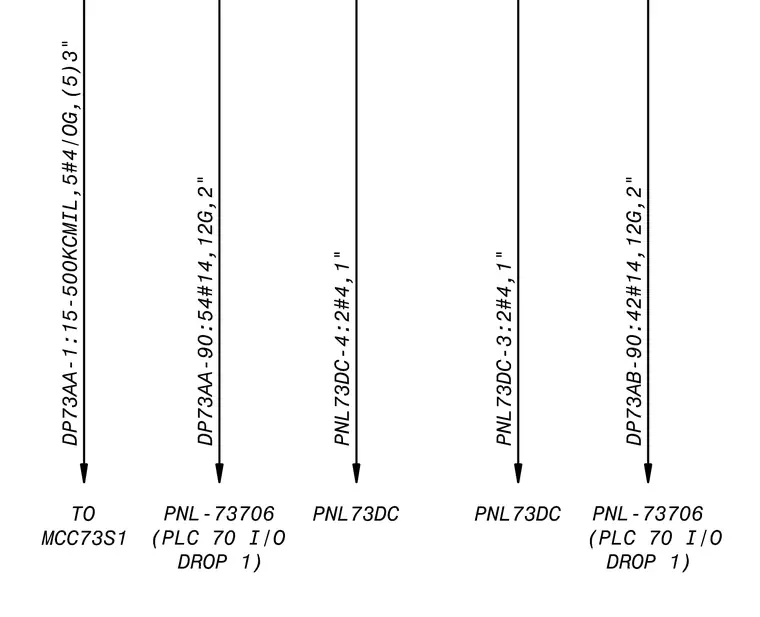

This electrical diagram details power distribution connections between PNL-73706, PNL73DC, and MCC73S1. Feeders run through specified conduit sizes and wire gauges, including 500 KCMIL cables with ground and multi-conductor configurations like DP73AA-90 and DP73AB-90. Panel designations and PLC 70 I/O drop assignments are clearly indicated for each circuit path.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
