Electrical · E-CS42X

Fire Rated Poke Thru Device

Materials

Elements

Millwork / Casework Connections / Plates

About this detail

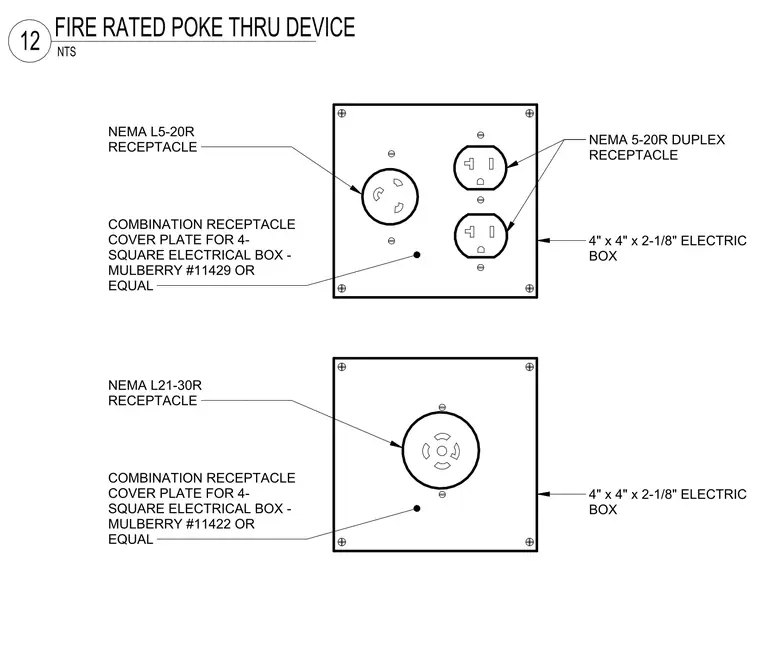

A fire-rated poke-through device assembly houses electrical boxes, cover plates, and various receptacles. The top assembly incorporates a four-inch by four-inch by two-and-one-eighth-inch electrical box fitted with a combination receptacle cover plate, specifically a Mulberry number 11429 or equal, housing two NEMA 5-20R duplex receptacles and one NEMA L5-20R receptacle. The bottom assembly features a matching four-inch by four-inch by two-and-one-eighth-inch electrical box with a combination receptacle cover plate, specifically a Mulberry number 11422 or equal, accommodating a single NEMA L21-30R receptacle.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
