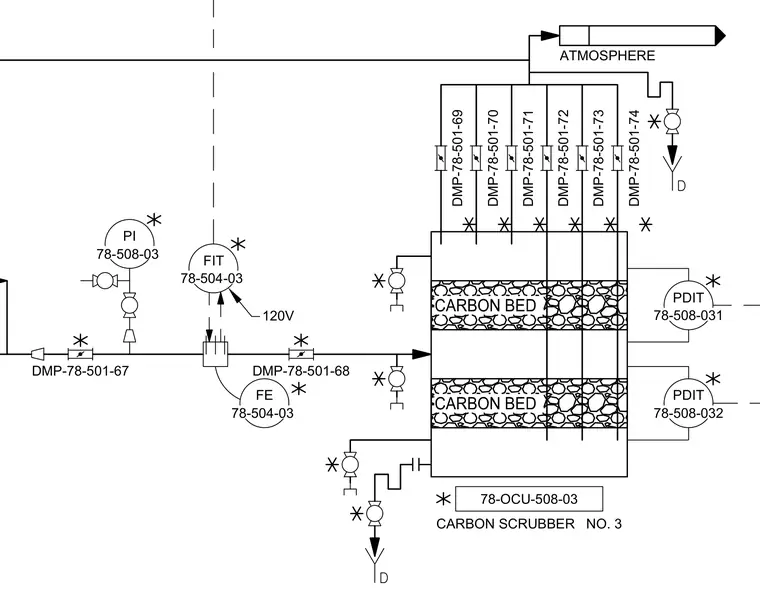

Carbon scrubber no. 3 connects to process piping with inline dampers DMP-78-501-67 and DMP-78-501-68, flow element FE 78-504-03, flow transmitter FIT 78-504-03 with 120V power, and pressure indicator PI 78-508-03. The vessel contains dual carbon beds with differential pressure indicators PDIT 78-508-031 and PDIT 78-508-032. Exhaust routing passes through multiple parallel dampers DMP-78-501-69 through DMP-78-501-74 toward the atmosphere.
PI PDIT 78-508-032 PDIT 78-508-031 ATMOSPHERE 78-OCU-508-03 CARBON SCRUBBER NO. 3 FIT FE DMP-78-501-67 DMP-78-501-68 DMP-78-501-69 DMP-78-501-70 DMP-78-501-71 DMP-78-501-72 DMP-78-501-73 DMP-78-501-74 120V
