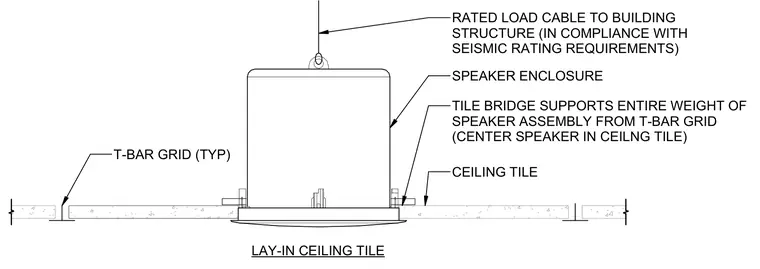

A speaker enclosure is centered within a ceiling tile and supported by a tile bridge that transfers the entire assembly weight to the lay-in T-bar grid. A rated load cable connects the speaker enclosure directly to the building structure to satisfy seismic rating requirements. The speaker sits flush within the lay-in ceiling tile, which is framed by typical T-bar grid members.
LAY-IN CEILING TILE T-BAR GRID (TYP) TILE BRIDGE SUPPORTS ENTIRE WEIGHT OF SPEAKER ASSEMBLY FROM T-BAR GRID (CENTER SPEAKER IN CEILNG TILE) CEILING TILE SPEAKER ENCLOSURE RATED LOAD CABLE TO BUILDING STRUCTURE (IN COMPLIANCE WITH SEISMIC RATING REQUIREMENTS)
