Unistrut Pendant Mounted 4 Foot Lighting Fixture Mounting Detail

Materials

Metal (misc.)

Elements

Walls Floors / Slabs Anchors / Embeds

Connections

Base Plate / Anchorage

About this detail

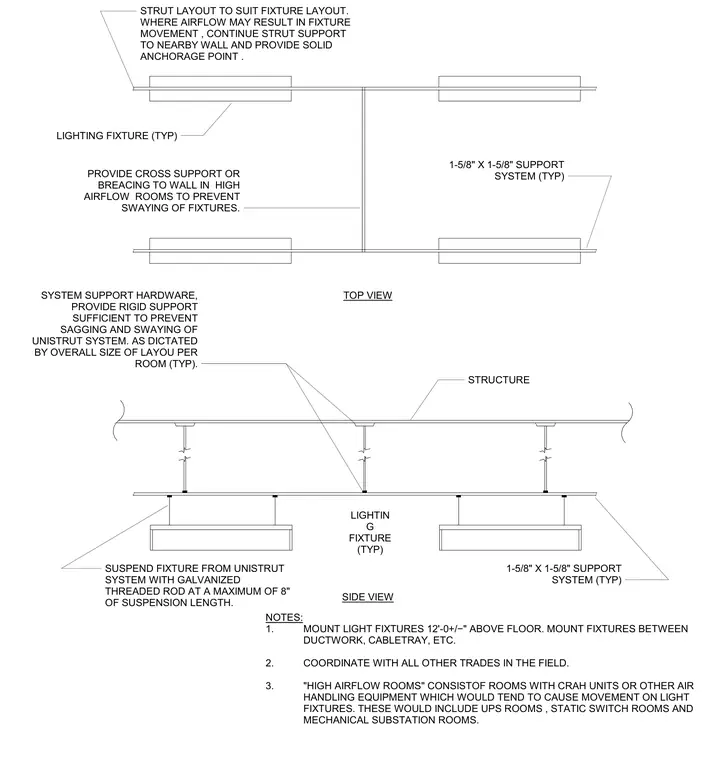

This electrical detail shows a pendant-mounted lighting fixture suspended from a 1-5/8 inch by 1-5/8 inch Unistrut support system secured to the overhead structure. Lighting fixtures hang from the channel using galvanized threaded rod at a maximum suspension length of 8 inches, positioned approximately 12 feet above the floor. In high airflow rooms subject to movement from computer room air handler units, uninterruptible power supply rooms, static switch rooms, or mechanical substations, the strut support extends to nearby walls with cross bracing to prevent fixture sway.
