Electrical · E-CK5ES

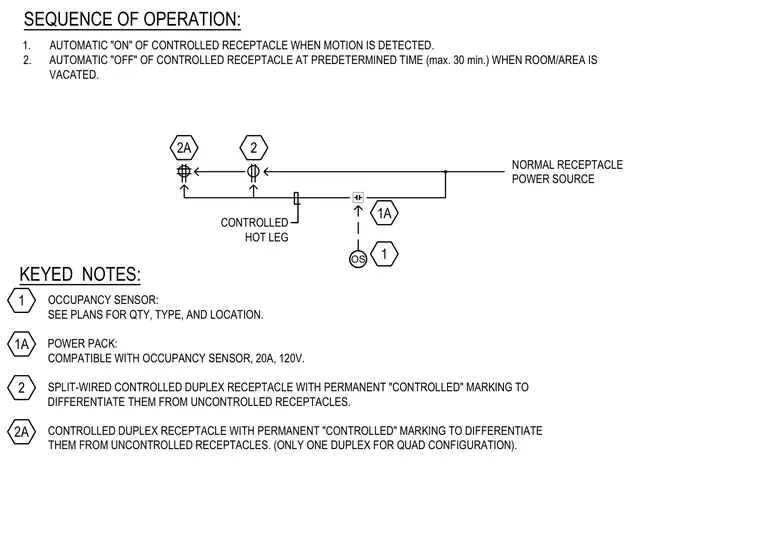

Occupancy Sensor Controlled Receptacle Wiring Diagram

About this detail

An occupancy sensor connects to a compatible twenty-ampere one-hundred-twenty-volt power pack to control a split-wired duplex receptacle. The controlled hot leg switches the receptacle on automatically when motion is detected and off after a predetermined time of up to thirty minutes when the area is vacated. Both controlled duplex receptacles feature permanent controlled markings to differentiate them from uncontrolled normal receptacles, with only one duplex marked for quad configurations.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
