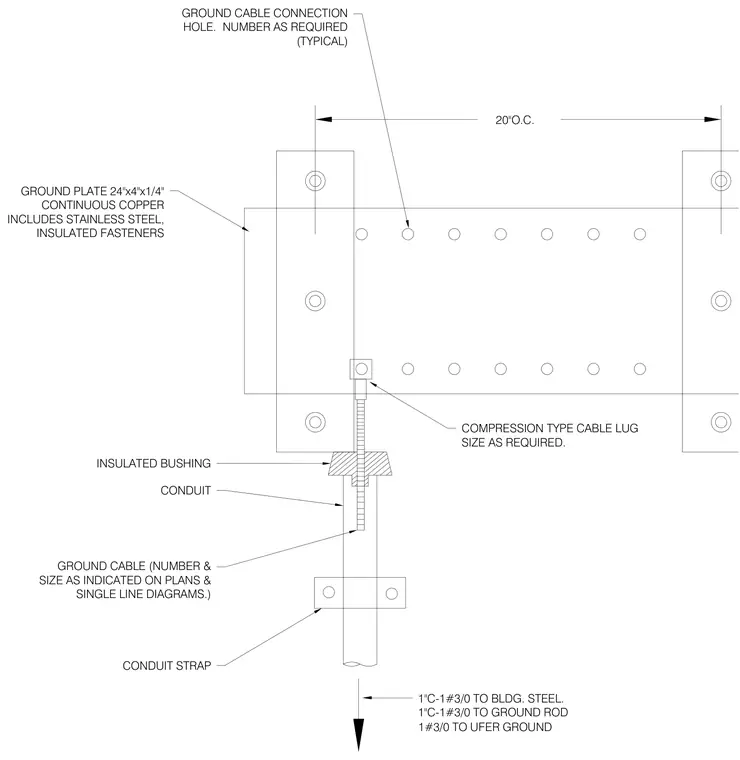

A continuous twenty-four by four by one-quarter inch copper ground plate is secured with stainless steel insulated fasteners spaced twenty inches on center. A ground cable routed through a conduit with an insulated bushing attaches to the ground plate using a compression type cable lug. Conduit straps secure the conduit in place as it routes to building steel, ground rods, or Ufer grounds. Additional ground cable connection holes are provided along the copper plate as required.
20"O.C. GROUND PLATE 24"x4"x1/4" CONTINUOUS COPPER INCLUDES STAINLESS STEEL, INSULATED FASTENERS GROUND CABLE CONNECTION HOLE. NUMBER AS REQUIRED (TYPICAL) INSULATED BUSHING CONDUIT GROUND CABLE (NUMBER & SIZE AS INDICATED ON PLANS & SINGLE LINE DIAGRAMS.) CONDUIT STRAP COMPRESSION TYPE CABLE LUG SIZE AS REQUIRED. 1"C-1#3/0 TO BLDG. STEEL. 1#3/0 TO UFER GROUND 1"C-1#3/0 TO GROUND ROD
