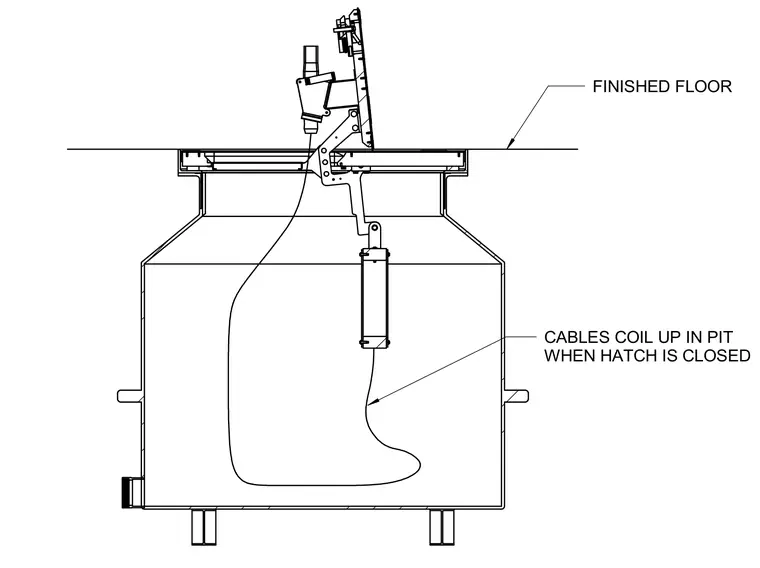

This cross-section details a prefabricated 400Hz utility pit installed flush with the finished floor level. The assembly incorporates an operable access hatch equipped with mechanical linkage for ground power deployment. Cables coil up within the interior of the pit when the hatch is closed.
