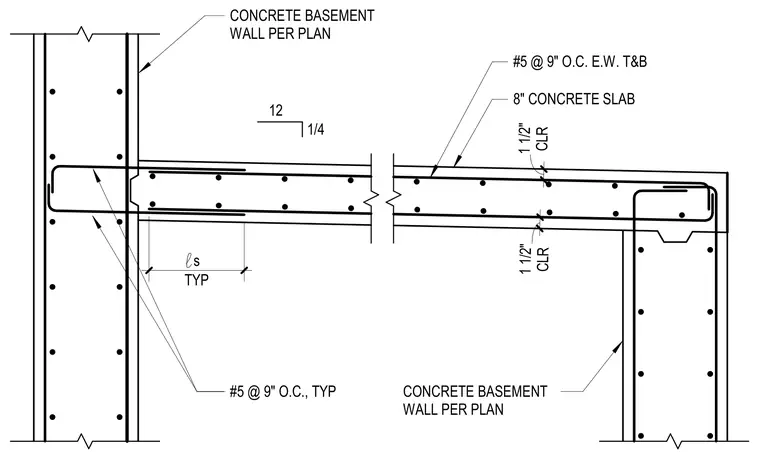

An eight-inch concrete slab ties into concrete basement walls per plan with a one-and-a-half-inch clearance. The slab is reinforced with number five bars at nine inches on center each way top and bottom. Wall and slab intersections feature hooked lap splices with standard development lengths.
TYP s l CLR 1 1/2" CLR 1 1/2" 12 1/4 8" CONCRETE SLAB CONCRETE BASEMENT WALL PER PLAN #5 @ 9" O.C. E.W. T&B #5 @ 9" O.C., TYP CONCRETE BASEMENT WALL PER PLAN
