Motor Operated Valve Electrical Schematic Diagram

Elements

About this detail

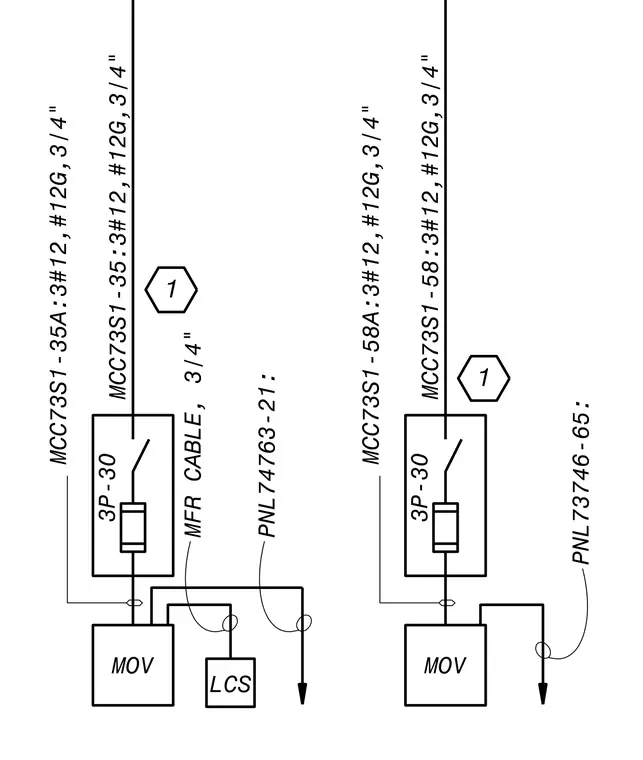

An electrical schematic diagram details the power and control wiring for motor operated valves fed from motor control center circuits. Power is routed from panels through three-pole thirty-amp fused disconnect switches using copper conductors in three-quarter inch conduits. Control connections incorporate manufacturer cables linking motor operated valves with local control stations and remote panels.
