Typical Raceway Support Methods Detail

Elements

About this detail

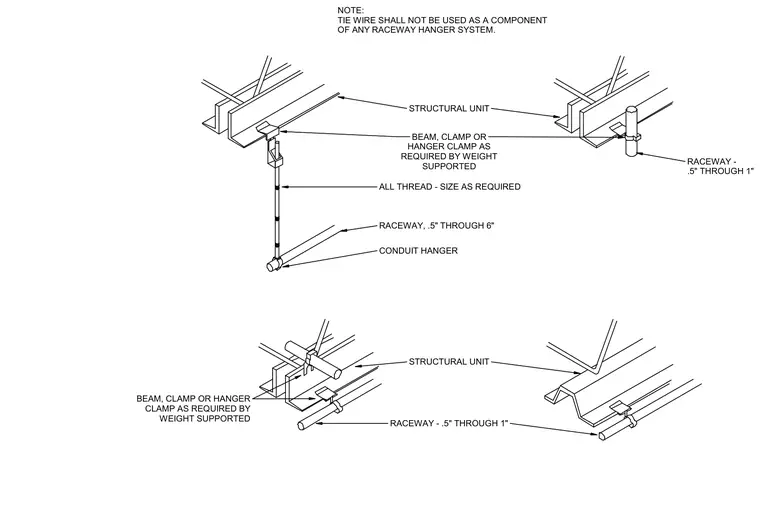

Raceways and conduits ranging from half-inch to six inches in diameter are suspended from structural units using beam clamps, hanger clamps, all-thread rods, and conduit hangers sized according to the supported weight. Tie wire is explicitly prohibited from being used as a component of any raceway hanger system. Various attachment configurations illustrate raceways secured directly to structural members or dropped via threaded rods.
