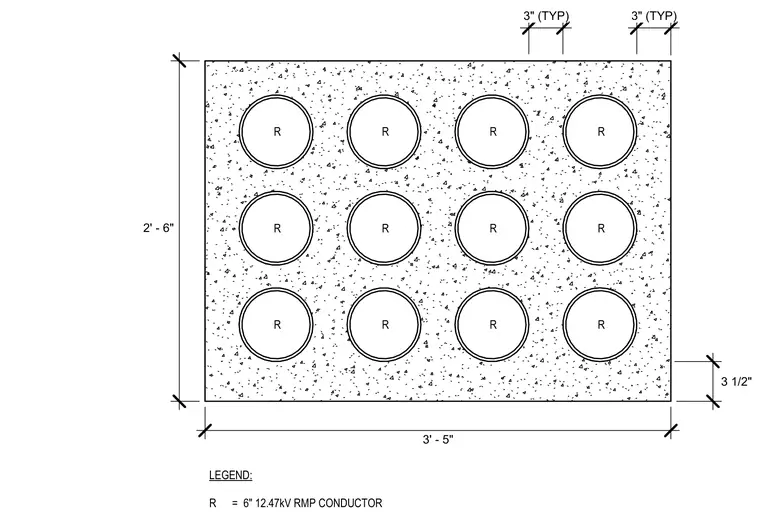

An underground electrical ductbank encases a matrix of twelve six-inch 12.47kV RMP conduits within a concrete envelope. The concrete encasement measures three feet five inches wide by two feet six inches high, with typical three-inch spacings between conduits and three and a half inches of concrete cover at the bottom.
3' - 5" 2' - 6" 3 1/2" 3" (TYP) 3" (TYP) LEGEND: R = 6" 12.47kV RMP CONDUCTOR R R R R R R R R R R R R
