E-CEK74 — Wall Plate, White

Electrical · E-CEK74

Wall Plate, White

Materials

Elements

Walls Connections / Plates

About this detail

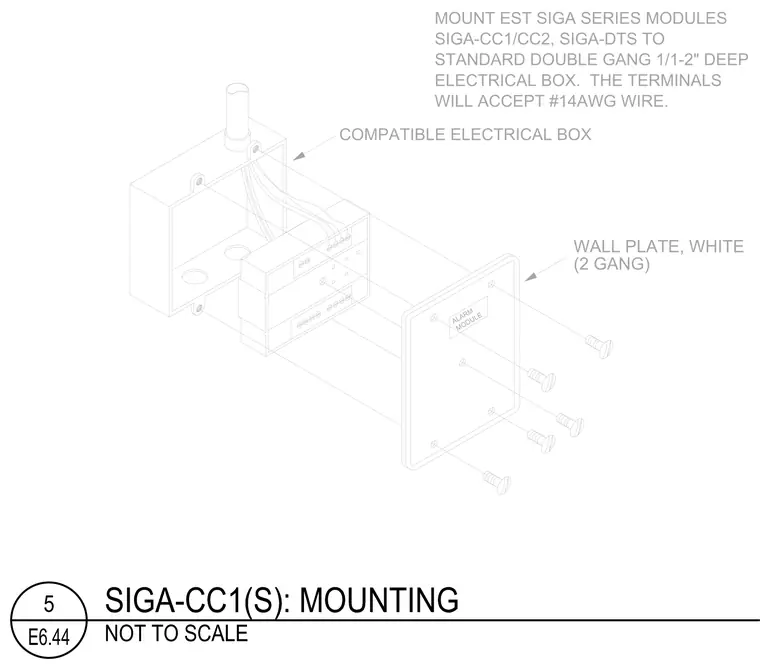

An EST SIGA series alarm module, such as model SIGA-CC1, SIGA-CC2, or SIGA-DTS, mounts to a standard double-gang one-and-one-half-inch deep compatible electrical box. The module terminals accept number fourteen American Wire Gauge wire. A white two-gang wall plate fastens over the module using matching screws.

MODULE ALARM COMPATIBLE ELECTRICAL BOX ELECTRICAL BOX. THE TERMINALS STANDARD DOUBLE GANG 1/1-2" DEEP SIGA-CC1/CC2, SIGA-DTS TO MOUNT EST SIGA SERIES MODULES WILL ACCEPT #14AWG WIRE. WALL PLATE, WHITE (2 GANG)
