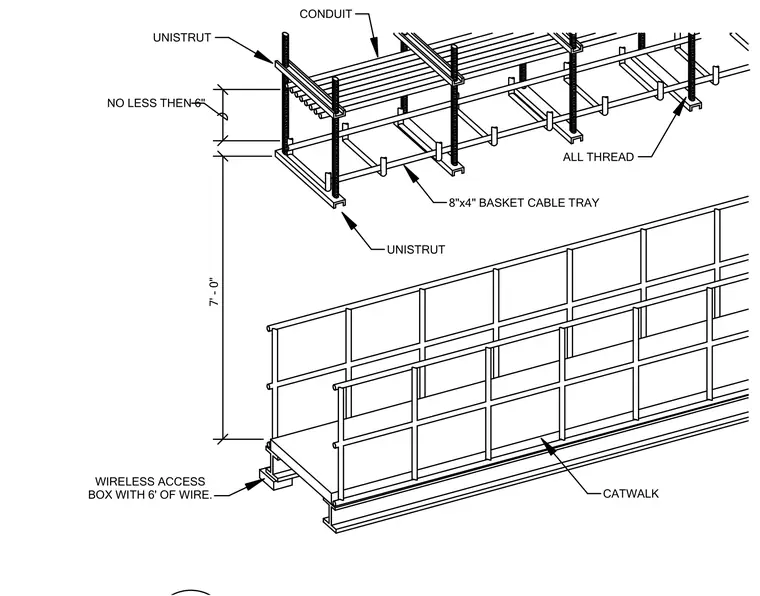

An eight-inch by four-inch basket cable tray is suspended overhead by Unistrut channels supported with all-thread rods, maintaining a minimum six-inch clearance above the supporting framework. Conduit runs along the overhead channel grid adjacent to the cable tray. A wireless access box with six feet of wire is positioned near the base structure. The catwalk sits seven feet below the overhead tray system, complete with handrails and structural framing.
WIRELESS ACCESS BOX WITH 6' OF WIRE. 7' - 0" CATWALK UNISTRUT UNISTRUT ALL THREAD CONDUIT NO LESS THEN 6" 8"x4" BASKET CABLE TRAY
