Level 4 Electrical Panel Board Schedule

About this detail

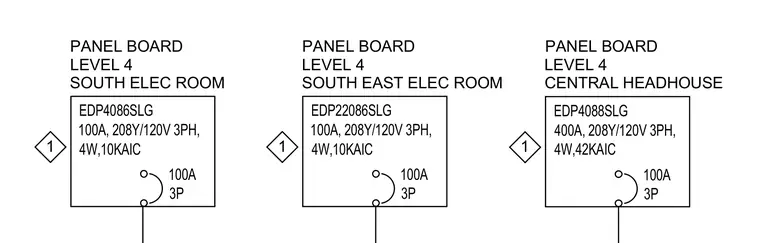

Three electrical panel boards located on Level 4 are detailed with specific amperage, voltage, phase, wire, and interrupting ratings. Panel EDP4086SLG in the south electrical room is rated at 100 amperes, 208Y/120 volts, 3 phase, 4 wire, with a 10 kAIC rating and a 100 ampere 3-pole breaker. Panel EDP22086SLG in the south east electrical room shares identical electrical characteristics. Panel EDP4088SLG in the central headhouse is rated at 400 amperes, 208Y/120 volts, 3 phase, 4 wire, with a 42 kAIC rating and a 100 ampere 3-pole breaker.
