Site Lighting Control Panel Diagram

Elements

About this detail

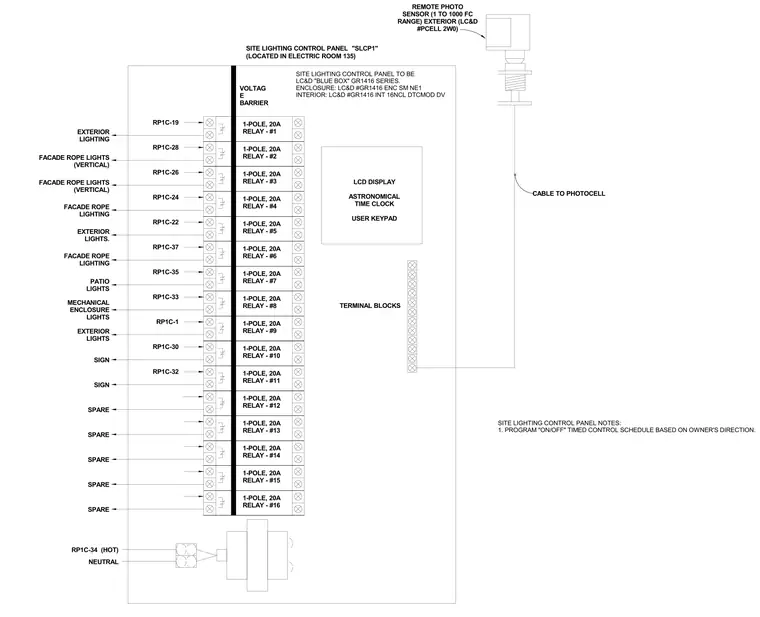

The site lighting control panel SLCP1 is housed in an LC&D Blue Box GR1416 series enclosure located in electric room 135 and features an LCD display, astronomical time clock, user keypad, and terminal blocks. It manages sixteen 1-pole, 20-amp relays connected to exterior lighting, facade vertical rope lights, patio lights, mechanical enclosure lights, and signs, with designated spare channels. A remote exterior photo sensor with a 1 to 1000 foot-candle range connects via cable to the photocell terminal blocks across a voltage barrier.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
