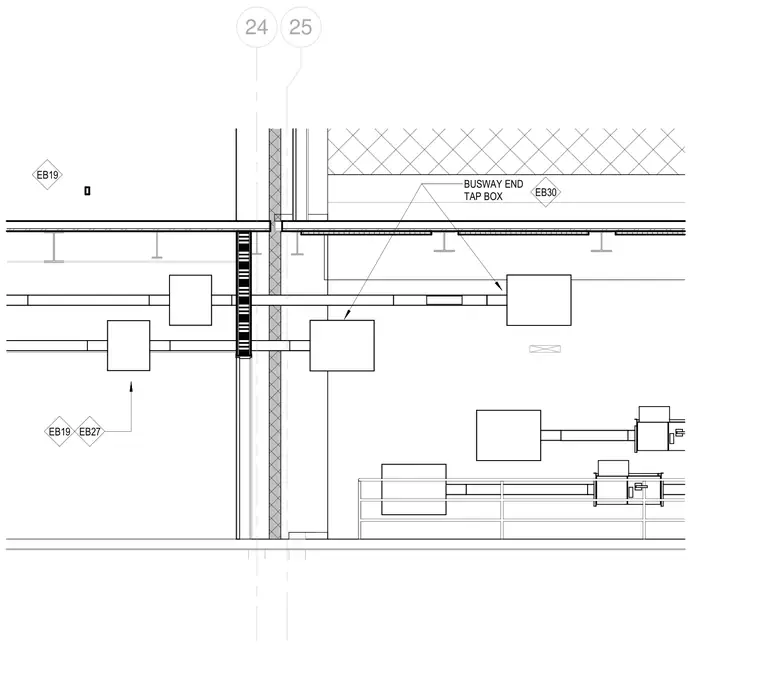

This electrical detail shows the termination of an electrical busway equipped with a tap box. The busway runs horizontally with multiple tap boxes connected via conduit or raceways. The installation details clearances near structural elements and expansion joints labeled EB19, EB27, and EB30.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
