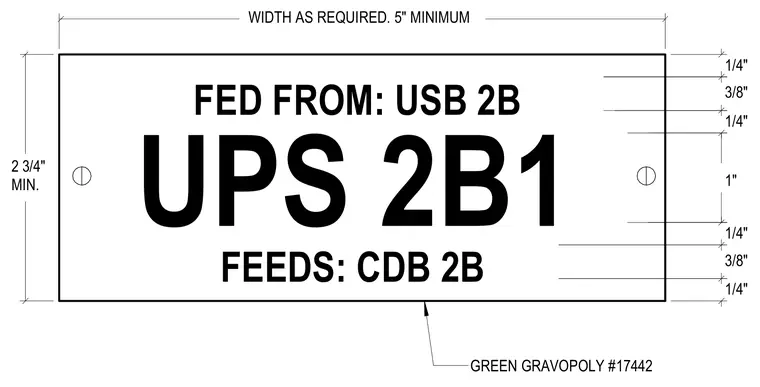

An engraved green Gravopoly #17442 electrical nameplate with specific text layout and dimensions. The nameplate features three lines of text indicating the power source, equipment designation, and fed distribution board, with a minimum width of 5 inches and a minimum height of 2 3/4 inches. Fastener holes are positioned on the left and right edges with precise spacing and margins indicated by dimension lines.
FED FROM: USB 2B UPS 2B1 FEEDS: CDB 2B GREEN GRAVOPOLY #17442 WIDTH AS REQUIRED. 5" MINIMUM 2 3/4" MIN. 1/4" 1/4" 1/4" 1/4" 3/8" 3/8" 1"
