Electrical · E-C8B6M

Electrical Power Distribution Single Line Diagram

About this detail

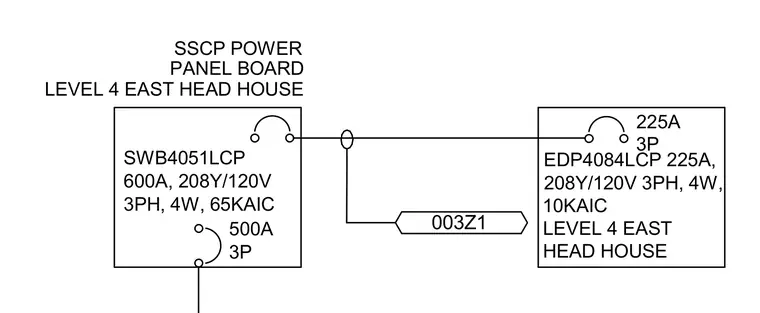

An electrical single line diagram displays the power distribution connection between the Level 4 East Head House SSCP power panel board SWB4051LCP and panel board EDP4084LCP. Panel SWB4051LCP is rated at six hundred amperes, two hundred eight over one hundred twenty volts, three-phase, four-wire with sixty-five kiloampere interrupting capacity. Panel EDP4084LCP is rated at two hundred twenty-five amperes, two hundred eight over one hundred twenty volts, three-phase, four-wire with ten kiloampere interrupting capacity. The circuit between the panels is designated as 003Z1.
