Electrical · E-C4GBS

L Rating At Ambient - Less Than 1 Cfm/Sq Ft

Materials

Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Walls Partitions Floors / Slabs Anchors / Embeds Roof / Floor Openings

About this detail

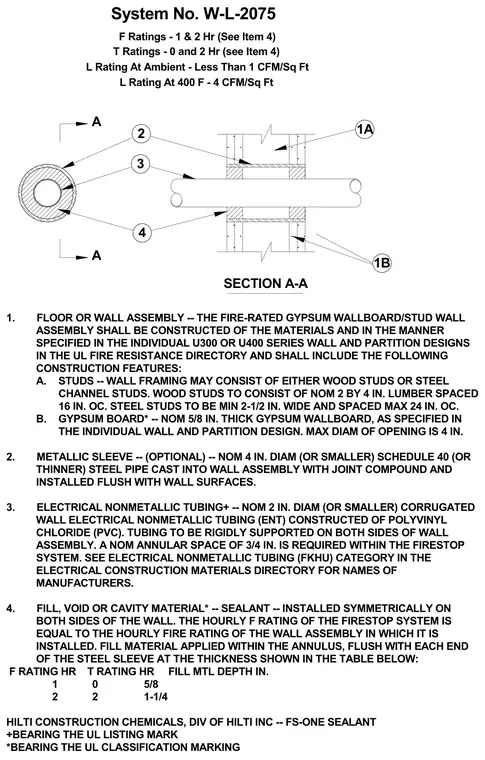

This firestop system detail shows electrical nonmetallic tubing penetrating a fire-rated gypsum wallboard and stud wall assembly. The wall framing consists of either nominal 2 by 4-inch wood studs spaced 16 inches on center or minimum 2-1/2-inch wide steel channel studs spaced maximum 24 inches on center, faced with nominal 5/8-inch thick gypsum board. An optional nominal 4-inch diameter or smaller schedule 40 steel metallic sleeve is installed flush with the wall surfaces. The penetrating item is a nominal 2-inch diameter or smaller corrugated wall electrical nonmetallic tubing constructed of polyvinyl chloride, which requires a nominal annular space of 3/4-inch. Fill, void, or cavity material sealant is installed symmetrically on both sides of the wall within the annulus to achieve the required hourly ratings.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
