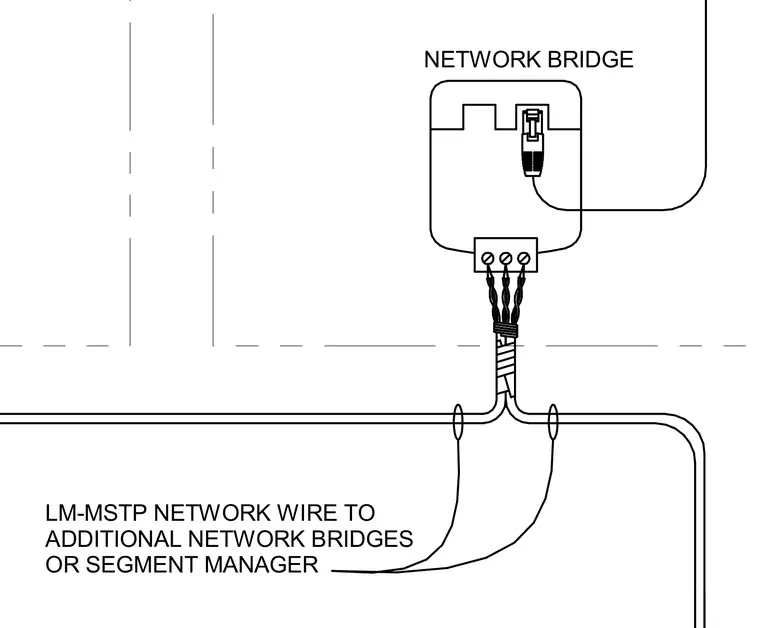

An LM-MSTP network wire connects to additional network bridges or a segment manager via terminal block connections. The network bridge module integrates shielded twisted-pair cabling for building management system communication.
NETWORK BRIDGE LM-MSTP NETWORK WIRE TO ADDITIONAL NETWORK BRIDGES OR SEGMENT MANAGER
