VFD Enclosure Wiring Diagram

About this detail

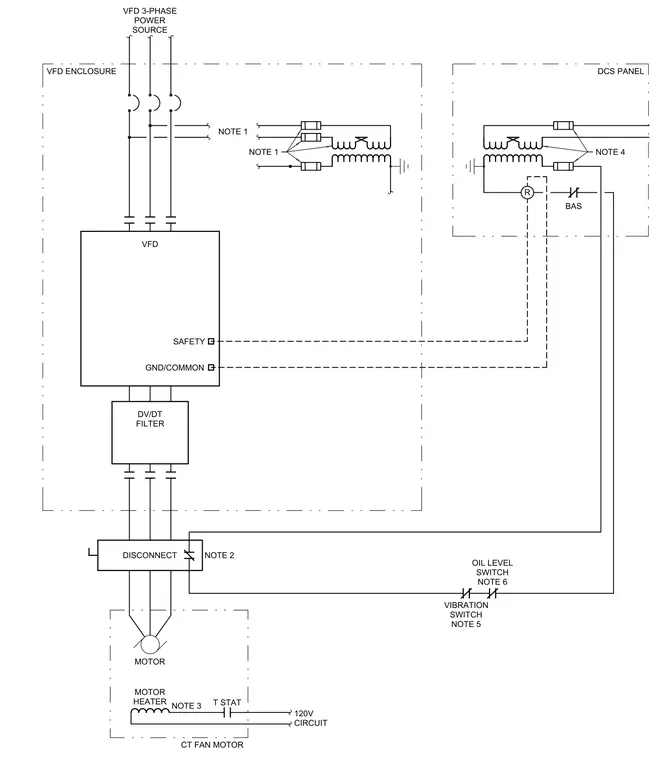

This electrical schematic details the wiring connections for a variable frequency drive enclosure receiving a 3-phase power source. The variable frequency drive unit feeds into a DV/DT filter and connects downstream to a motor disconnect switch and the main motor. Control wiring includes safety, ground/common, motor heater, thermostat, oil level switch, vibration switch, and building automation system interfaces linked back to a distributed control system panel. Additional connections include a 120-volt circuit feeding the cooling tower fan motor heater.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
