Electrical Equipment Anchorage to Concrete Wall Detail

Materials

Concrete Steel Stone Metal (misc.)

Elements

Walls Anchors / Embeds

Connections

Base Plate / Anchorage Bolted Connection Embed Plate Expansion / Slip Connection

About this detail

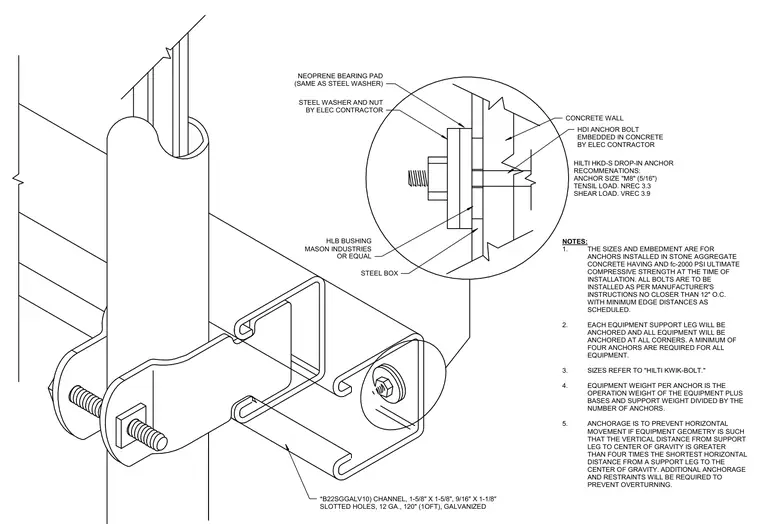

An equipment support channel is anchored to a concrete wall using Hilti drop-in anchors and steel hardware. A neoprene bearing pad and steel washer separate the steel box from the support connection, while an HLB bushing by Mason Industries provides vibration isolation. The assembly utilizes twelve-gauge galvanized steel channel framing with slotted holes sized one and five-eighths by one and five-eighths inches. Installation notes specify anchor sizing for stone aggregate concrete with a minimum twenty-hundred psi compressive strength. Each equipment support leg requires anchoring at all corners with a minimum of four anchors.
